CR825 Multifunctional diesel fuel injection common rail test bench

    Buy cheap CR825 Multifunctional diesel fuel injection common rail test bench from wholesalers

    Buy cheap CR825 Multifunctional diesel fuel injection common rail test bench from wholesalers
    • Buy cheap CR825 Multifunctional diesel fuel injection common rail test bench from wholesalers

    CR825 Multifunctional diesel fuel injection common rail test bench

    Ask Lasest Price
    Brand Name : XBD
    Model Number : XBD-CR825
    Certification : CE & ISO
    Price : USD10000.00-15000.00 per set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 60 sets per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    CR825 Multifunctional diesel fuel injection common rail test bench

    CR825 Multifunctional diesel fuel injection common rail test bench


    The main function:

    1. Test common rail injector

    2. Test common rail pump

    2. Test unit pump/pump nozzle

    4. Test the HEU injector

    5. Test the HUI actuator pump

    6. Test the Carter 320D common rail pump

    7. Maximum rail pressure 180-240 MPa

    8. IQA code generation

    9. Injection drive and system voltage monitor

    10. Common rail with filtering function

    11. Dual DRV configuration

    12. High-voltage filter plugging reminder function

    13. Oil tank and diesel mailbox integrated air conditioning strong refrigeration system


    Data of test bench

    1Supply voltage380V AC, 220V AC (optional)
    2Phase3 phase, single phase (optional)
    3Frequency50Hz/60Hz
    4Current25-45A (MAX)
    5Main motor power11-22KW
    6Main motor speed range0-4000RPM/MIN
    7Oil pump motor power/flow0.19KW/10LMIN
    8Diesel pump motor power/flow11KW/10LMIN
    9Control loop voltageDC12V/24V 350W
    10EUC internal boost0-200V DC (MAX)
    11Oil tank volume36L
    12Diesel fuel tank volume45L
    13Oil temperature control methodHeating/forced cooling
    15Flow meter (injection)4-500ml/min
    16Flow meter (oil pump oil supply)1-400L/H
    17Flow meter (oil)5-600L/H
    18Motor and work surface center distance125mm
    19Weight1100kg
    20Appearance net size2250*1280*1920mm
    21Package size2350*1500*2100mm

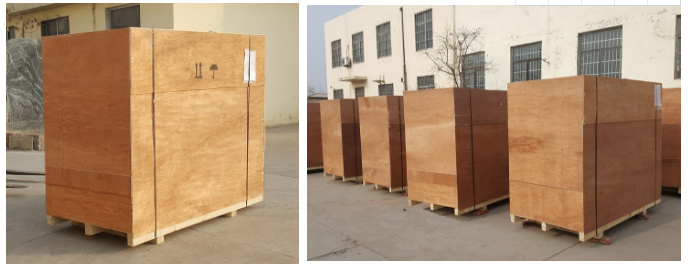

    Package

    The package is wooden case or plywood case, if you need, we can also pack the products according to your demands.


    FAQ

    Q: How many days to produce this test bench?

    A: It need 5-20 days to produce the test bench.

    Q:How can I pay for it?

    A:We support TT payment, West Union, and L/C etc.

    Q:How to sign an order?

    A:We can sign an order offline or online on Ali.

    Q:How long of warranty?

    A:12 months

    Q:Do you have some repairing tools?

    A:Yes, we have many kinds of repairing tools for common rail injector and pump
