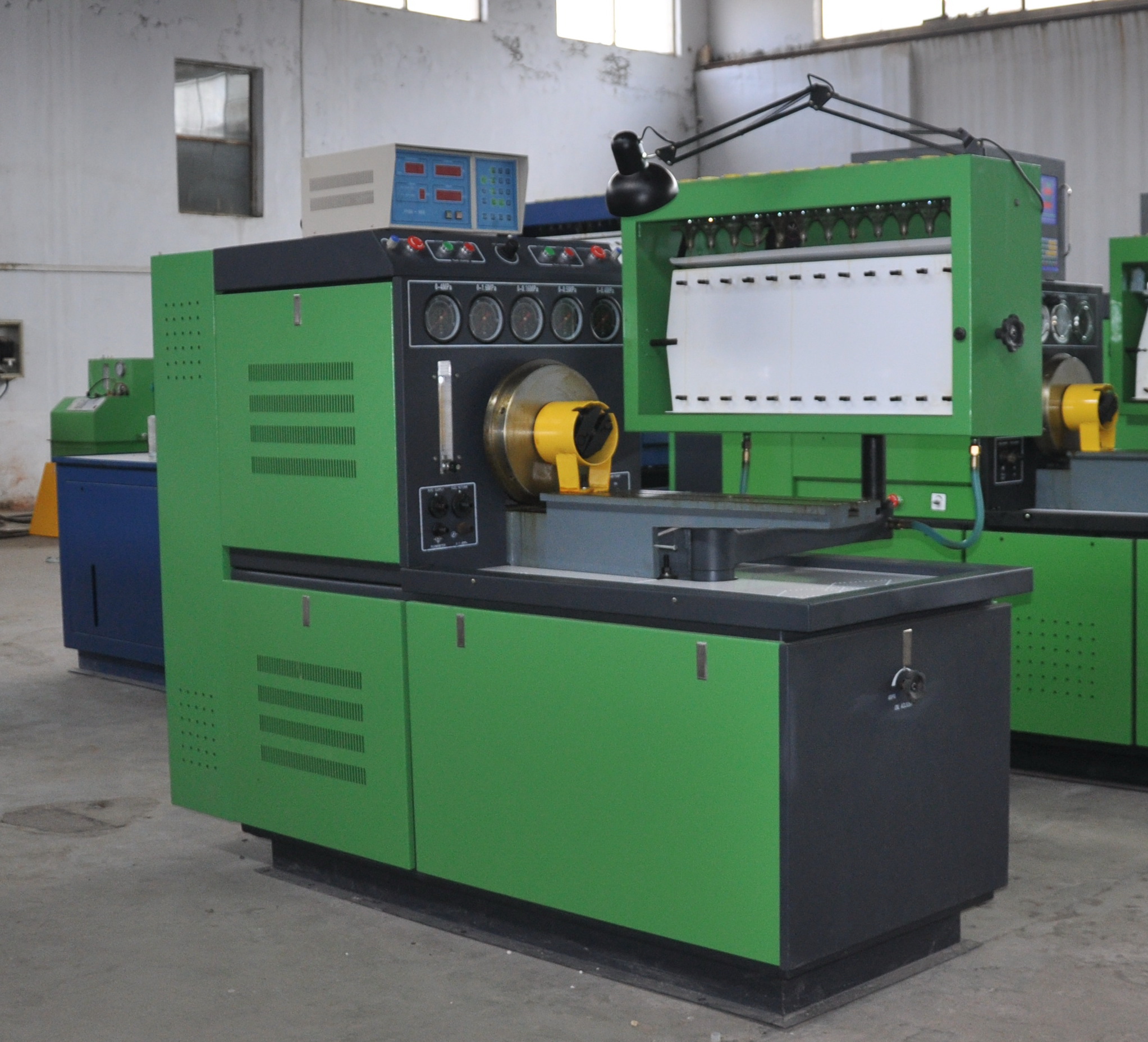

I The main features of test bench

1. The main principal axis revolution, oil metering counting, Oil temperature control, pressure display use digital display

2. The touching type oil proof switch can realize left and right two sides operation .the system us stable and reliable

3. The host machine frequency conversion speed regulation . The regulation speed is about 4000 revolution /min

4. The manual speed regulation and rotate speed multi-gear setting

5. 0-0.25Mpa air supply output , built-in type blast pump

6. It has DC12V and DC24V stable power output

7. The host machine is channel steel structure; the complete structure is compact and steady

8. the shell use static painting, it is beautiful

9. The oil sump tank can realize right and left rotation , and also up and down regulation

10. The test bench has urgent brake switch

11. It adopts advanced frequency conversion governor, with high precision rotate speed

12. The test bench have under voltage, over pressure, super heating and over loading protection function

13. Low noise of test bench

14. The test bench has high mechanical efficiency and save energy

II The usage of the diesel fuel Injection Pump test bench

According to the different pump. the test bench use proper attachment, and carry out the following testing:

1. Test different cylinder oil supply condition and oil supply evenness under different revolution

2. Test oil supply starting point and interval angle

3. Governor working performance checking and regulation

4. The pressure compensation performance test and checking

5. The distribution pump working performance test and regulations

6. The cold starting device and solenoid valve performance checking

7. The distribution pump inner pressure test under different revolution

8. The injection pump seal performance test

9. Check the oil transfer pump self priming performance

10.The built-in high reliability horizontal type inflation pump

III The main technical data of test bench

    Founded in 1966, lying at the foot of the famous Mountain Tai, an important skeleton enterprise being tech-reconstructed in 65, 75, 85 period by the nation, the Taian Taishan Jinshi Machine Co., Ltd(the primary Taian Experimental Equipment Factory) is a member of the gas engine industry union and a Chinese automobile servicing equipment league syndic unit, a nozzle and injection pump industry syndic unit. Now, the factory has more than 200 workers and covers an area of 100 thousand square meters, which has over 400 producing equipments. It has the ability of produce the machine, electronics, transportation equipment, molding tool. Year to year provides injection pump technology training. It is the largest special manufactory producing gas engines in China.

    The factory has 4 centers for product test, physical and chemical, metrological and checking, and computers and adopts CAD computer assistant design, EDM archive management. It also has well-equipped and advanced heat treatment workshop, machining workshop, molding tool, rivet joint and weld, painting workshop, and sales net. Factory is honored in sequence with many titles, such as National Enterprise, High-tech enterprise, Enterprise who honor contacts and abide by one’s word, National CAD applications demonstration enterprise, etc. In addition, the factory has acquired the ISO9001 two certificates approbated by the approbation committee of the Chinese national import & export enterprises approbation organ and the national approbation committee of Chinese system approbation organ. Has 5 series, over 80 models, more than 30 thousand sets have been produced, and standing more than 60% of the markets, the main products Fuel Injection Pump Test Stand has acquired the National Quality Award twice and be used widely in road transportation, railway transportation, ship, engineering machine, agriculture machine, military industry, teaching and research, manufacture of gas engine, etc. The automobile maintenance equipments, Communication materials series product, plastic machinery, architecture project machines, and gas meters produced in our factory are all occupy steady market in their own scopes. Being titled the Famous Brand of Shandong Province, the products are exported to more than thirty regions, including Asia, Africa, America, etc..
