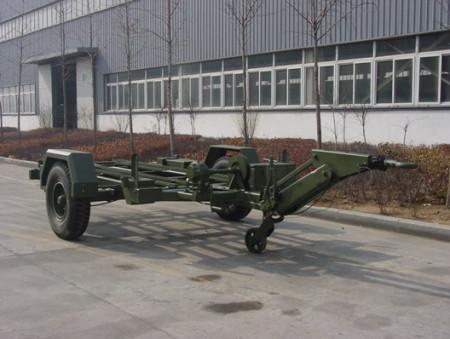

The Drawbar trailer is designed for stevedoring and transporting Military Shelters

Dimension & Weight:

Overall Length: 5800mm

Overall Width: 2490mm

Height: 950mm(Fender Position)

The Minimum Clearance from the ground:330mm

Platform (L x W x H) 2860 X 1970 X 670

Tare weight: 1,150kgs

Maximum Speed: 80(km/h)

Wheel track: 2260

Tire size: 8.25-16LT-16PR bias tyre; 2 PCS;

Tires pressure: 630kpa

Frame material: 16MnL steel plate

Axle: 1 PCS

Note:

(1): All the details not mentioned above should be conformity with Chinese Standard.

(2): These specifications are given as information, SINOTRUCKTREAILERS have right to

change them without previous no tice.
