3 axle 38000 Liters fuel tanker semi trailer (38CBM)

    Buy cheap 3 axle 38000 Liters fuel tanker semi trailer (38CBM) from wholesalers

    Buy cheap 3 axle 38000 Liters fuel tanker semi trailer (38CBM) from wholesalers
    • Buy cheap 3 axle 38000 Liters fuel tanker semi trailer (38CBM) from wholesalers

    3 axle 38000 Liters fuel tanker semi trailer (38CBM)

    Ask Lasest Price
    Brand Name : sinotruck
    Certification : ISO9001
    Delivery Time : 30 days after receiving 30% deposit by T/T
    Payment Terms : T/T, L/C
    Supply Ability : 20000 Unit/Units per Year
    • Product Details
    • Company Profile

    3 axle 38000 Liters fuel tanker semi trailer (38CBM)


    Main Dimensions

    Overall Length

    11240mm


    Overall Width

    Overall Height

    2800mm

    Tare Weight

    11500KGS

    Loading Capacity

    38m3

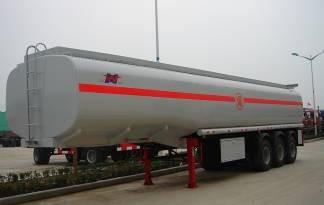

    Photo only for reference,
    final product can be made according to exact requirements

    Tank Body

    Shape

    Mono block Cylinder

    Total Volume(m3)

    38CBM

    Tanker Body Material

    6mm steel / Q235 high tensile strength steel

    End plate

    6mm steel sheet/Q235 high tensile strength steel

    Manhole cover

    Aluminum alloy API manhole cover, ∮500mm ,
    2 sets with 2 breather valve

    Bottom Valve

    1-2 sets of Aluminum API Pneumatic Bottom Valve

    Discharging valve

    2-4 set ∮100mm discharging valves

    Discharging Pipe

    4”rubber hose, 2 pcs, 6m long

    Chassis

    Main Beams

    Special design I beam, connected by bolts and nuts with tanker body,
    removable from tanker body for separate transportation;

    Axle

    3 axles

    L1 12 Ton

    Landing Gear

    JOST brand Two-speed, manual operating, heavy duty landing gear

    King Pin

    JOST brand 2” bolt-in king pin

    Suspension

    German design heavy duty mechanical suspension

    Pneumatic Braking System

    WABCO RE 6 relay valve;
    T30/30+T30 Spring brake chamber; 45L air tanks.

    Wheel rim

    8.25R22.5 wheel rim, 13 pieces

    Tire

    11R22.5 tubeless tire with one spare tire, 13 pieces

    Painting

    Complete Chassis sand blasting to clean rust,
    1 coat of anticorrosive prime, 2 coats of final paint

    Accessories

    One standard tool box
